DNS入门搭建 | 老陕小张

一、环境介绍

配置根据自己的电脑配置，设置

系统说明	服务器/Linux	测试客户端win
系统版本	Centos7.8	window10专业版
配置	2G,4cpu	4G,2 vcpu

二、配置搭建环境

1.配置网络镜像源

//备份镜像源

[root@xiaozhang ~]# mv /etc/yum.repos.d/CentOS-* /opt/

//下载阿里云网络镜像源

[root@xiaozhang ~]# curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo

//清除缓存安装包

[root@xiaozhang ~]# yum clena all

//刷新网络镜像源

[root@xiaozhang ~]# yum repolist

2.检查是否关闭Selinux

检查关闭，如果没有关闭，请关闭Selinx

[root@xiaozhang ~]# getenforce
Disabled

如何关闭Selinux

//更改配置文件

[root@xiaozhang ~]# sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

//关机重启

[root@xiaozhang ~]# reboot

3.放行DNS端口53

//查看防火墙是否启动
[root@xiaozhang ~]# firewall-cmd --state
running
//如果不是防火墙没有启动，无需执行下面的的命令
[root@xiaozhang ~]# firewall-cmd --zone=public --add-port=53/tcp --permanent
success
[root@xiaozhang ~]# firewall-cmd --zone=public --add-port=53/udp --permanent
success
[root@xiaozhang ~]# firewall-cmd --reload
success
[root@xiaozhang ~]# firewall-cmd --zone=public --list-ports
53/tcp 53/udp

三、搭建DNS服务

1.安装DNS软件

[root@xiaozhang ~]# yum install bind-* -y

2.配置文件修改

//打开文件/etc/named.conf
vim /etc/named.conf
options {
        listen-on port 53 { any; }; //更改了监听的IP地址，any表示允许任何IP地址连接
        listen-on-v6 port 53 { ::1; };
        directory       "/var/named";
        dump-file       "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
        recursing-file  "/var/named/data/named.recursing";
        secroots-file   "/var/named/data/named.secroots";
        allow-query     { any; }; //更改了允许查询的IP地址，any表示允许任何IP地址查询
        recursion yes; //开启了递归查询
        forwarders {
		114.114.114.114;
		223.5.5.5;
		};  //增加转发域名DNS服务器
        dnssec-enable no;  //禁用了DNSSEC功能
        dnssec-validation no;  //禁用了DNSSEC验证
        /* Path to ISC DLV key */
        bindkeys-file "/etc/named.root.key";
        managed-keys-directory "/var/named/dynamic";
        pid-file "/run/named/named.pid";
        session-keyfile "/run/named/session.key";
};
logging {
        channel default_debug {
                file "data/named.run";
                severity dynamic;
        };
};

zone "." IN {
        type hint;
        file "named.ca";
};

include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

3.配置解析的域名

解析域名

vim /etc/named.rfc1912.zones
……
//正向解析
zone "skillzhang.com" IN {
    type master;
    file "skillzhang.com.zone";
    allow-update { none; };
};
//反向解析
zone "127.168.192.in-addr.arpa" IN {
        type master;
        file "192.168.127.arpa";
        allow-update { none; };
};
//正向解析文件
vim skillzhang.com.zone
$TTL 1D
@    IN SOA    @ rname.invalid. (
                    0    ; serial
                    1D    ; refresh
                    1H    ; retry
                    1W    ; expire
                    3H )    ; minimum
    NS    @
    A    192.168.127.100
www IN A 192.168.127.100
//反向解析文件
vim 192.168.127.arpa
$TTL 1D
@    IN SOA    skillzhang.com. root (
                    0    ; serial
                    1D    ; refresh
                    1H    ; retry
                    1W    ; expire
                    3H )    ; minimum
    NS    skillzhang.com.
    A     192.168.127.100
100 IN PTR skillzhang.com. //100为ip地址
//启动DNS服务
[root@xiaozhang named]# systemctl  restart named
[root@xiaozhang named]# systemctl  enable  named
Created symlink from /etc/systemd/system/multi-user.target.wants/named.service to /usr/lib/systemd/system/named.service.

四、检查验证服务

1.Linux系统测试验证

替换本地DNS服务器地址

//修改本地DNS
[root@xiaozhang named]# vim /etc/sysconfig/network-scripts/ifcfg-ens33
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=none
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens33
UUID=94092393-3b2d-40c4-ac97-e406ba043ad9
DEVICE=ens33
ONBOOT=yes
IPADDR=192.168.127.100
PREFIX=24
GATEWAY=192.168.127.2
DNS1=192.168.127.100 //修改
IPV6_PRIVACY=no
ZONE=public
//重新启动网络
[root@xiaozhang ~]# systemctl  restart network

验证DNS服务解析

[root@xiaozhang named]# nslookup  //检查命令
> killbobo.com                     //域名正向解析检查
Server:         192.168.127.100
Address:        192.168.127.100#53

** server can't find killbobo.com: NXDOMAIN
> 192.168.127.100                  //域名反向解析检查
100.127.168.192.in-addr.arpa    name = skillzhang.com.
> baidu.com                        //域名缓存检查
Server:         192.168.127.100
Address:        192.168.127.100#53

Non-authoritative answer:
Name:   baidu.com
Address: 39.156.66.10
Name:   baidu.com
Address: 110.242.68.66

2.Window系统验证

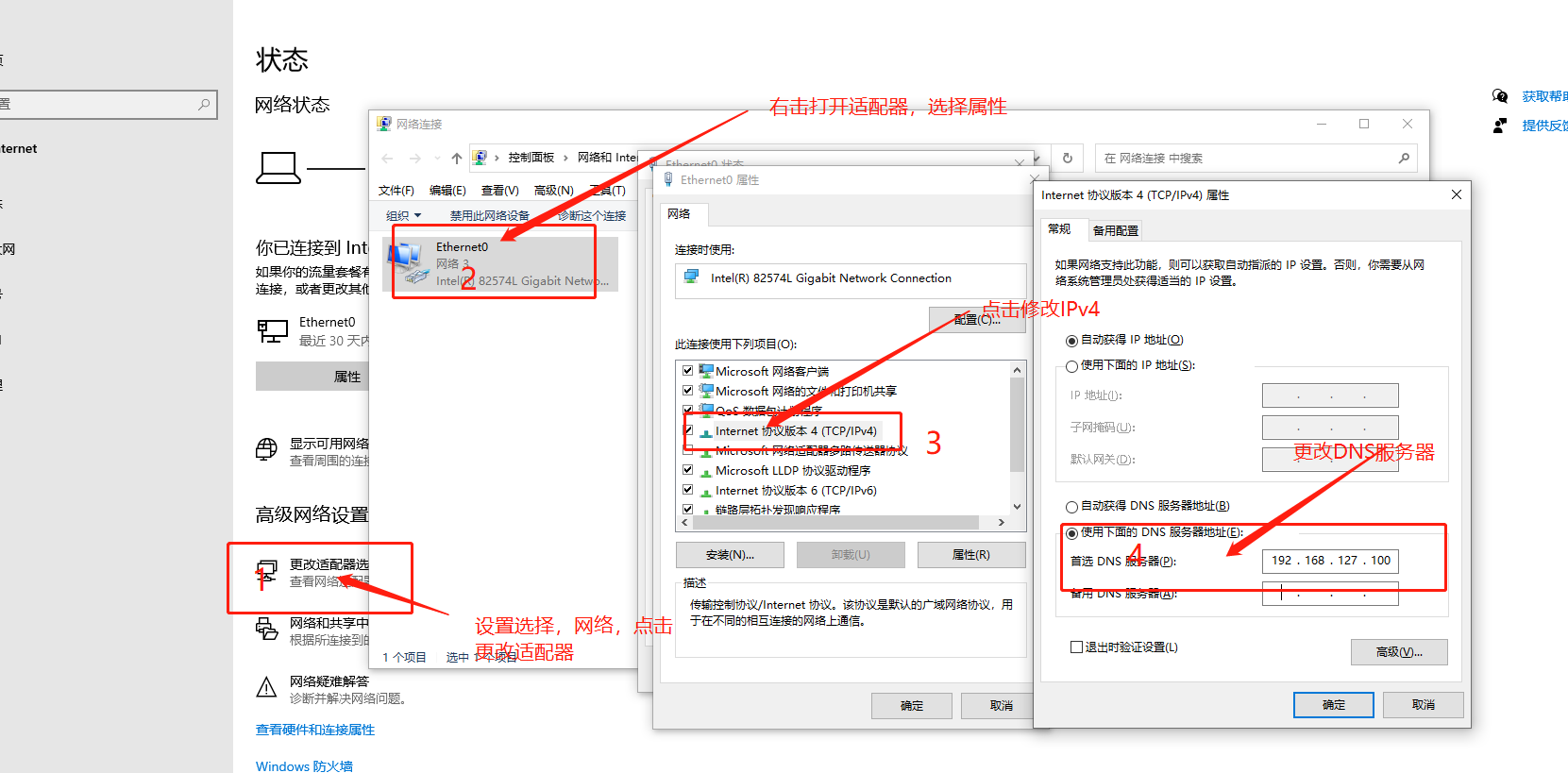

更改DNS配置

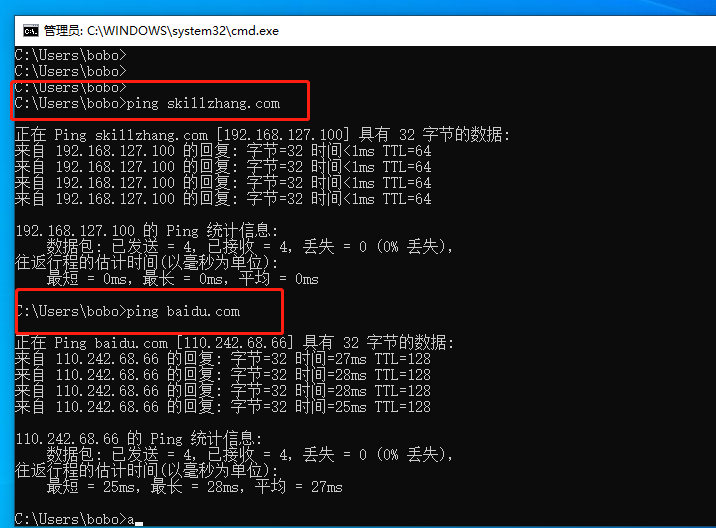

验证DNS服务，打开命令行窗口

验证DNS服务
